A complete and reliable range for cable connectivity and management
Wireless monitoring solution
Monitored combiner boxes

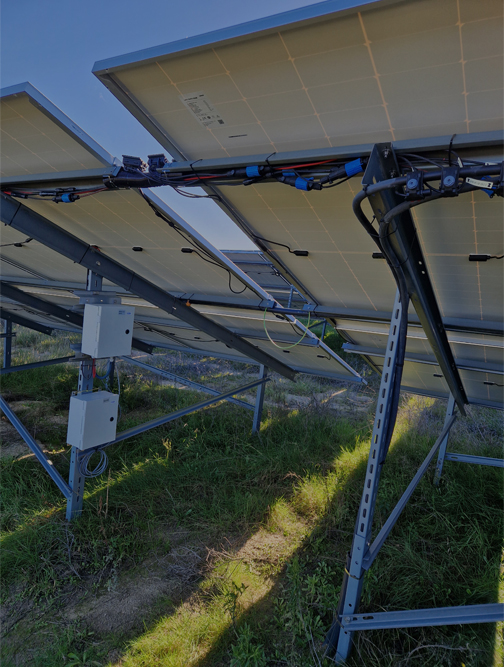

Certifies cable harnesses

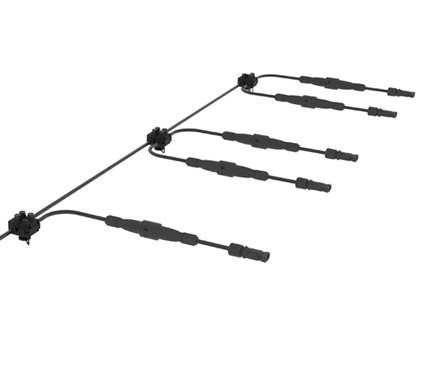

Insulation piercing connector (IPC) harnesses

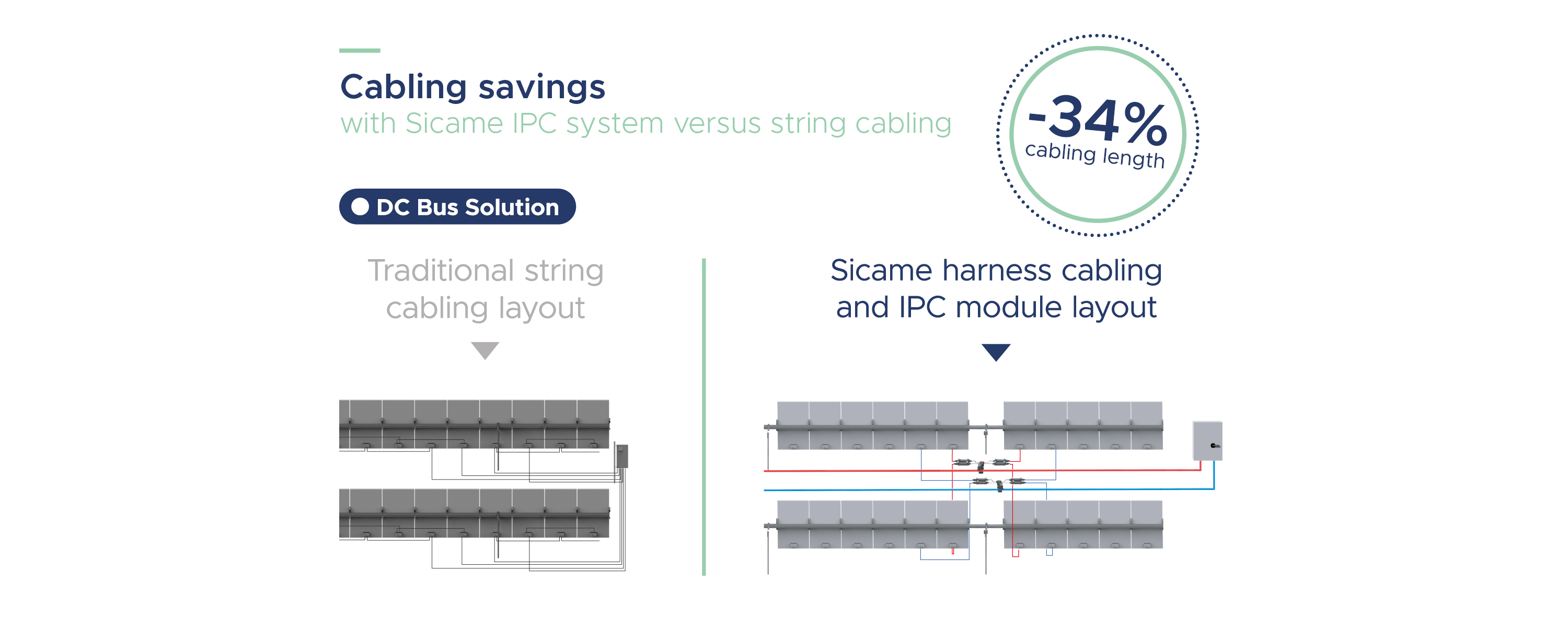

With a DC bus cable architecture, asset
owners can:
-
Achieve CAPEX savings through reducing material and man-hours
-
Mitigate human error
-
Lower O&M expenses and improve
technical losses
This unique cabling architecture is enabled through our factory-assembled and
quality-controlled plug and play piercing connector harnesses that minimize time of installation, offer a reliable one-step connection, and reduce the need for skilled labor.

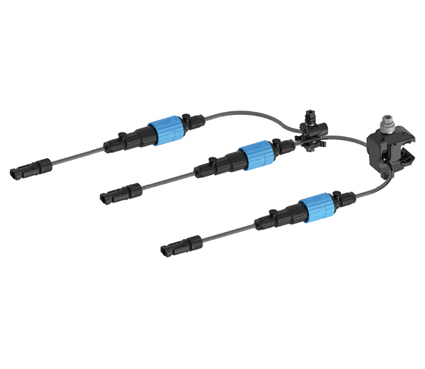

The IPC technology allows connecting several strings – protected with inline fuses
up to 60 A – to a double insulated bus cable without the need for stripping.
quality-controlled plug and play piercing connector harnesses that minimize time of installation, offer a reliable one-step connection, and reduce the need for skilled labor.
The IPC technology allows connecting several strings – protected with inline fuses
up to 60 A – to a double insulated bus cable without the need for stripping.
-
Easy to install utilizing Sicame’s shear-head bolt technology
-
Replaceable fuse cartridges
-
Prefitted solar connectors matching string connectors
First solar harnesses
Sicame’s first solar harnesses is designed to optimize first solar PV modules’ – thin-film technology – production. Being fully assembled at Sicame factories, the harnesses provides a one-step highly reliable connection in the filed.
-
Plug-and-play installation
-
No overmolding of cables allows easy maintenance
-
Dielectric test: 6.5 kV – 300 mm/1 min under water
-
Operating temperature: -40°C to +90°C
-
Degree of protection: IP 68
-
System rating: 1500 V DC
-
Current rating: up to 70 A
-
Solar connector: matching PV panel

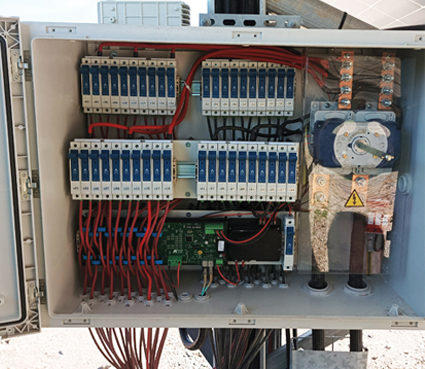

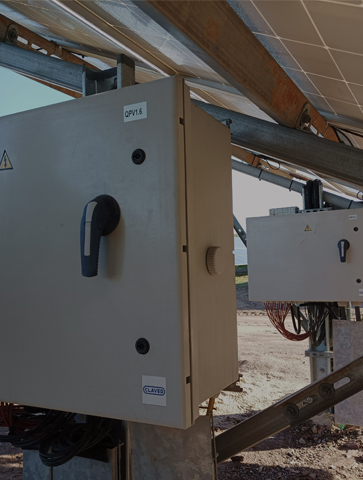

String combiner box
String combiner boxes (SCB) fitted with switches, fuses, and solar connectors for a plug-and-play connection at site. Different enclosure sizes and layouts are available to match the number of inputs and
project requirements.
project requirements.
Sicame SCB features include:
-
Strong mechanical shock resistance – IK10
-
IP54 or IP66 rating
-
High resistance to heat and fire
-
Light weight
-
2 pole pad lockable load break switches
-
2 pole surge arresters
-
1500 V DC cabling
-
Monitoring option
-
UV stabilized and corrosion resistant

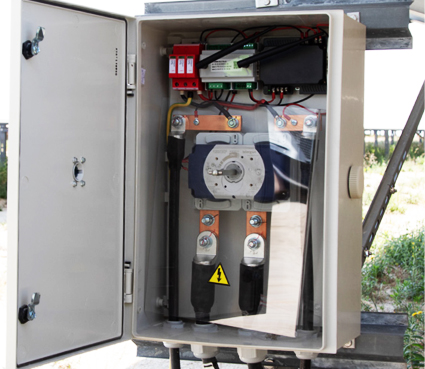

DC Isolation box
Sicame array boxes manufactured in compliance with international standards and tailored to fit project specifications providing a safe disconnection point.
-
High resistance to heat, fire and abnormal heat
-
High dielectric strength
-
Light weight
-
Door preservation system
-
Configurable according to project specifications

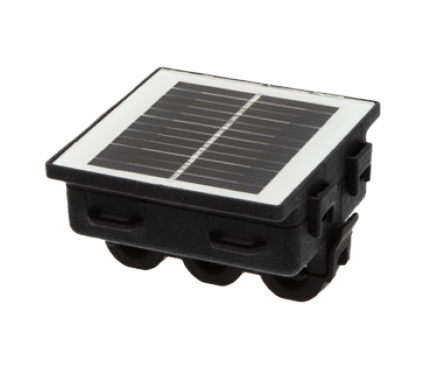

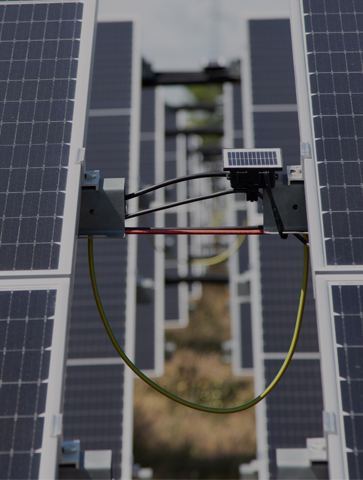

String monitoring module (SMM-30)
Self-powered sensors that measure current at string level and transmit data wirelessly.
The SMM-30 enhances asset productivity and unlocks predictive maintenance. Its easy-to-install feature allows retrofit installations.
The SMM-30 enhances asset productivity and unlocks predictive maintenance. Its easy-to-install feature allows retrofit installations.
-
Smart non-intrusive to assess string activity and fault detection
-
Easy to install, no specific tooling. Retrofit compatible
-
Outdoor, maintenance free with integrated solar-powered
-
Wireless standardized communication protocol
-
Fully insulated from the primary DC circuits

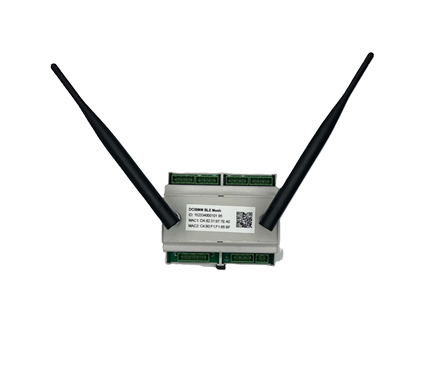

DC isolation box monitoring module (DCIBMM)
The compact DCIBMM collects current data from the SMM-30 field sensors, measures voltage and box temperature, and monitors switch position and arrester status. Data is sent to a gateway through modbus.
-
Voltage and temperature measurement
-
Switch and surge arrester status monitoring
-
Wireless standardized communication protocol
They trusted us

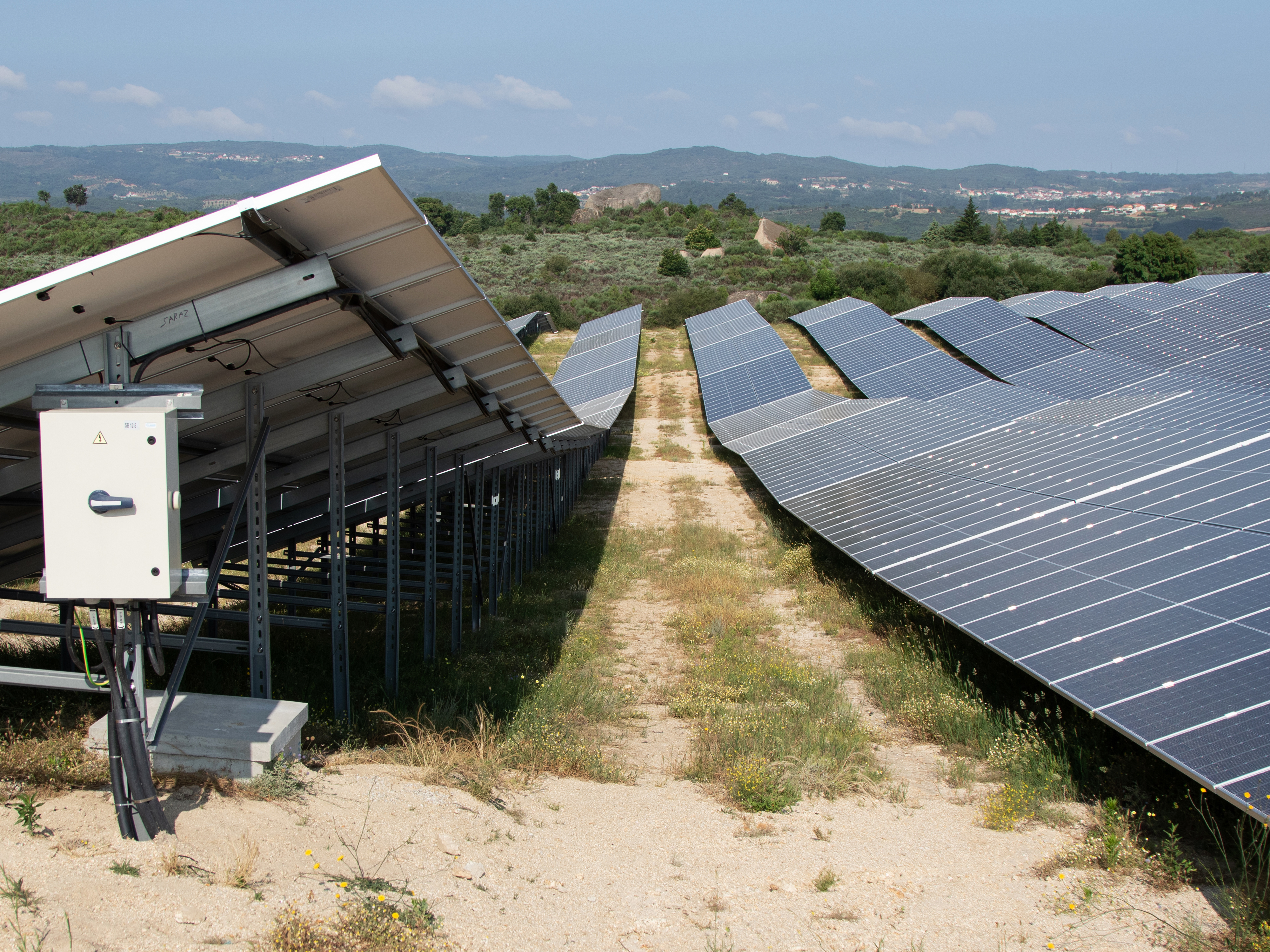

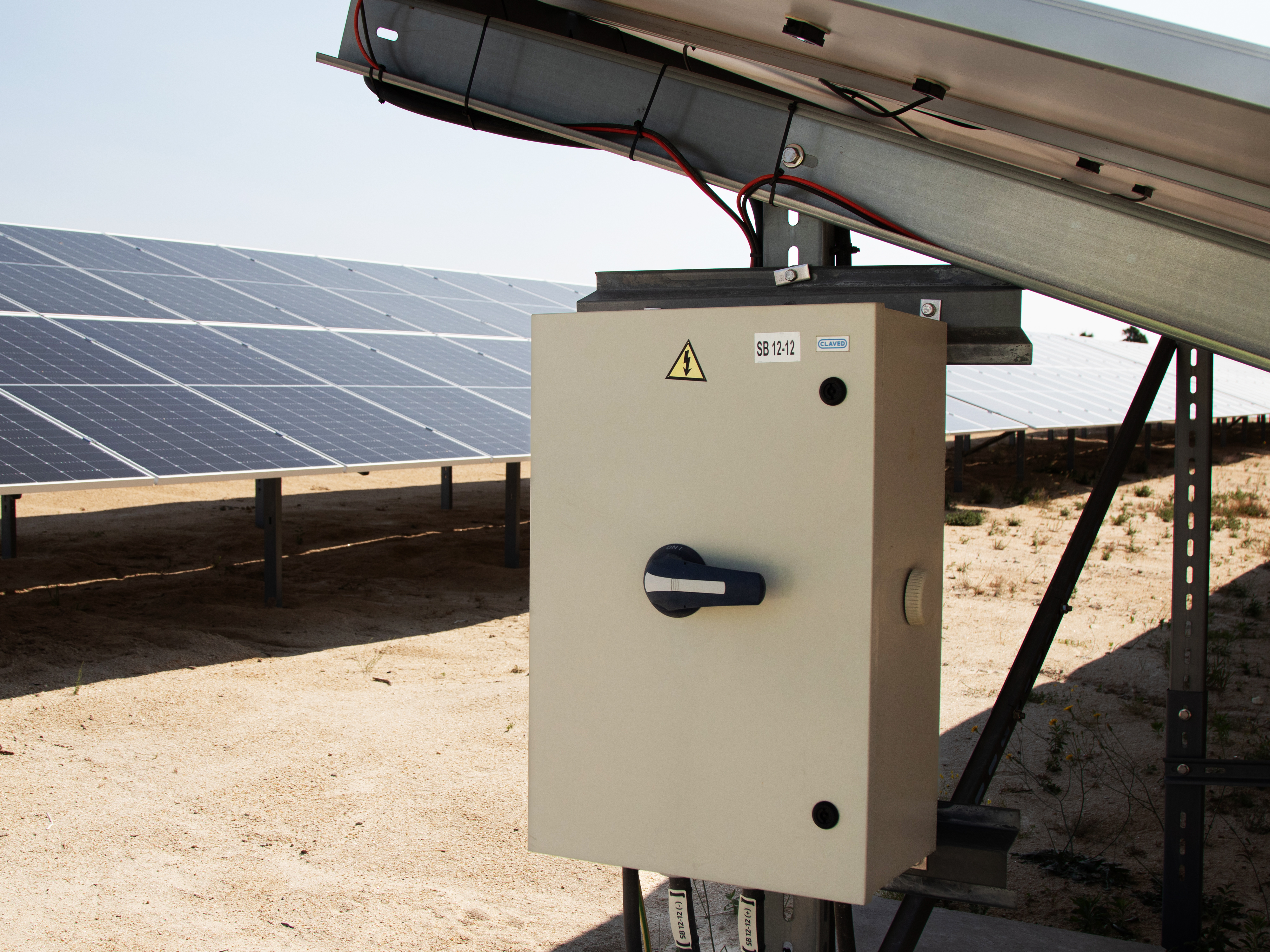

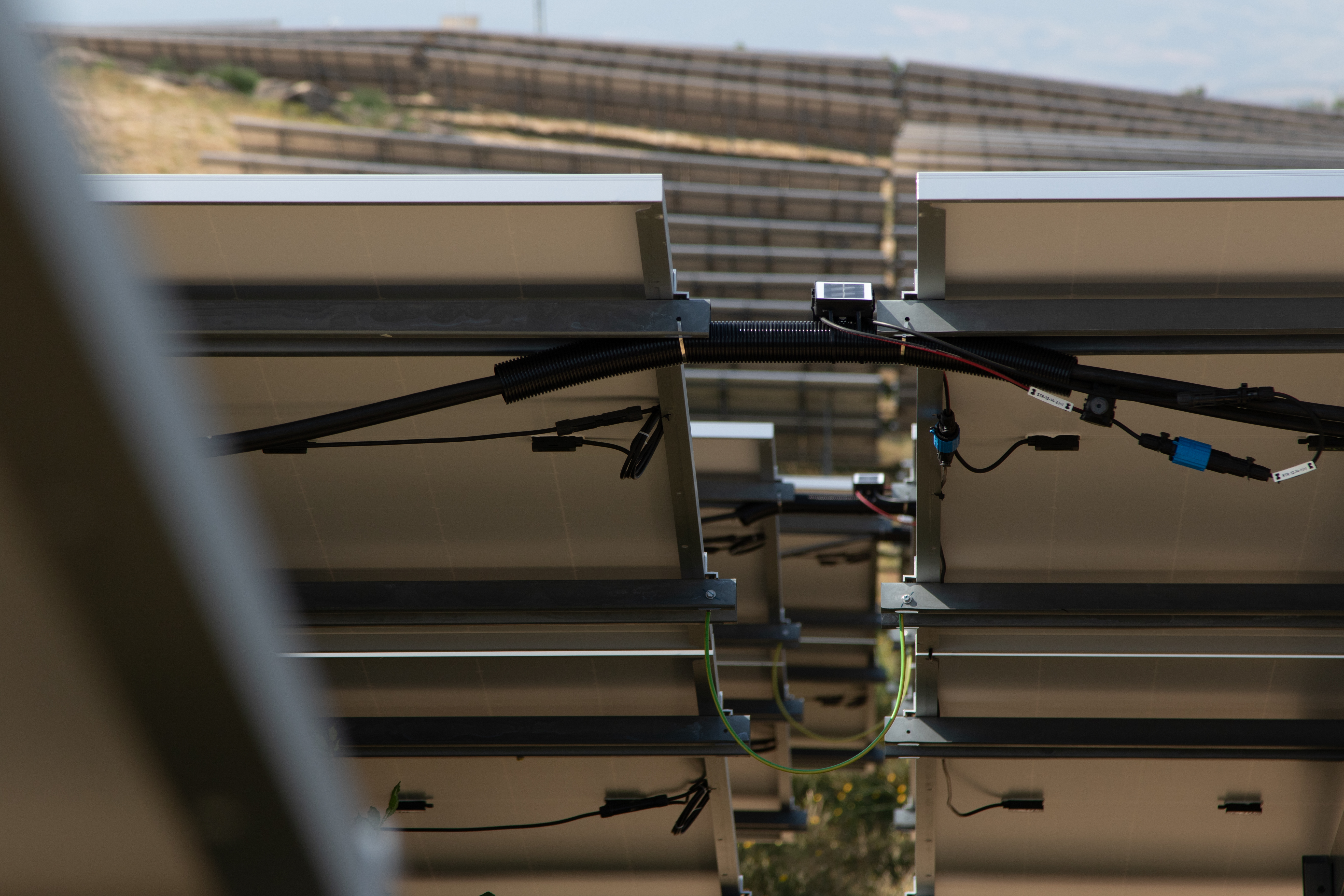

Valpacos, Portugal
50 MW
Valpacos, Portugal
50 MW
Valpacos, Portugal
50 MW

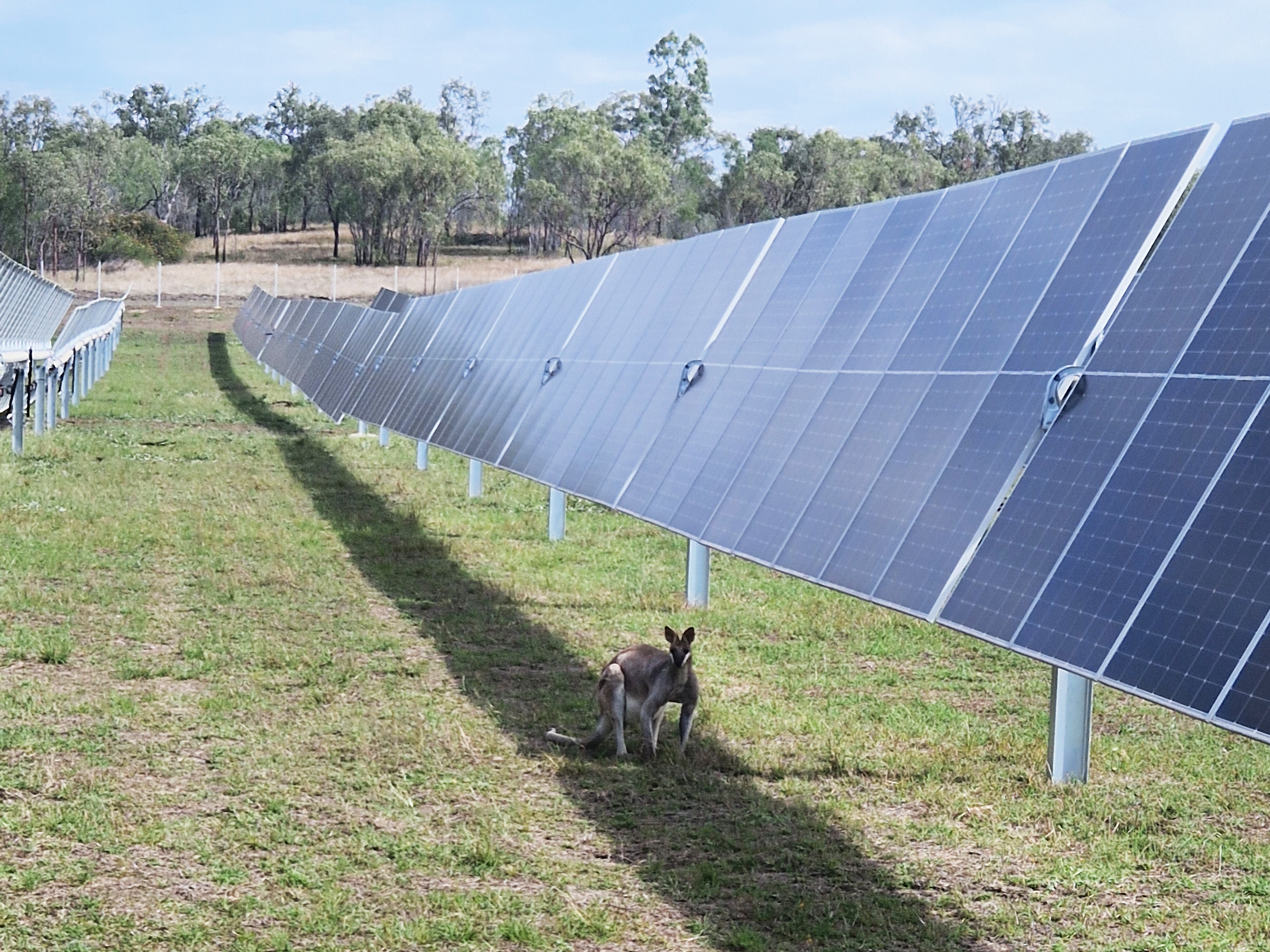

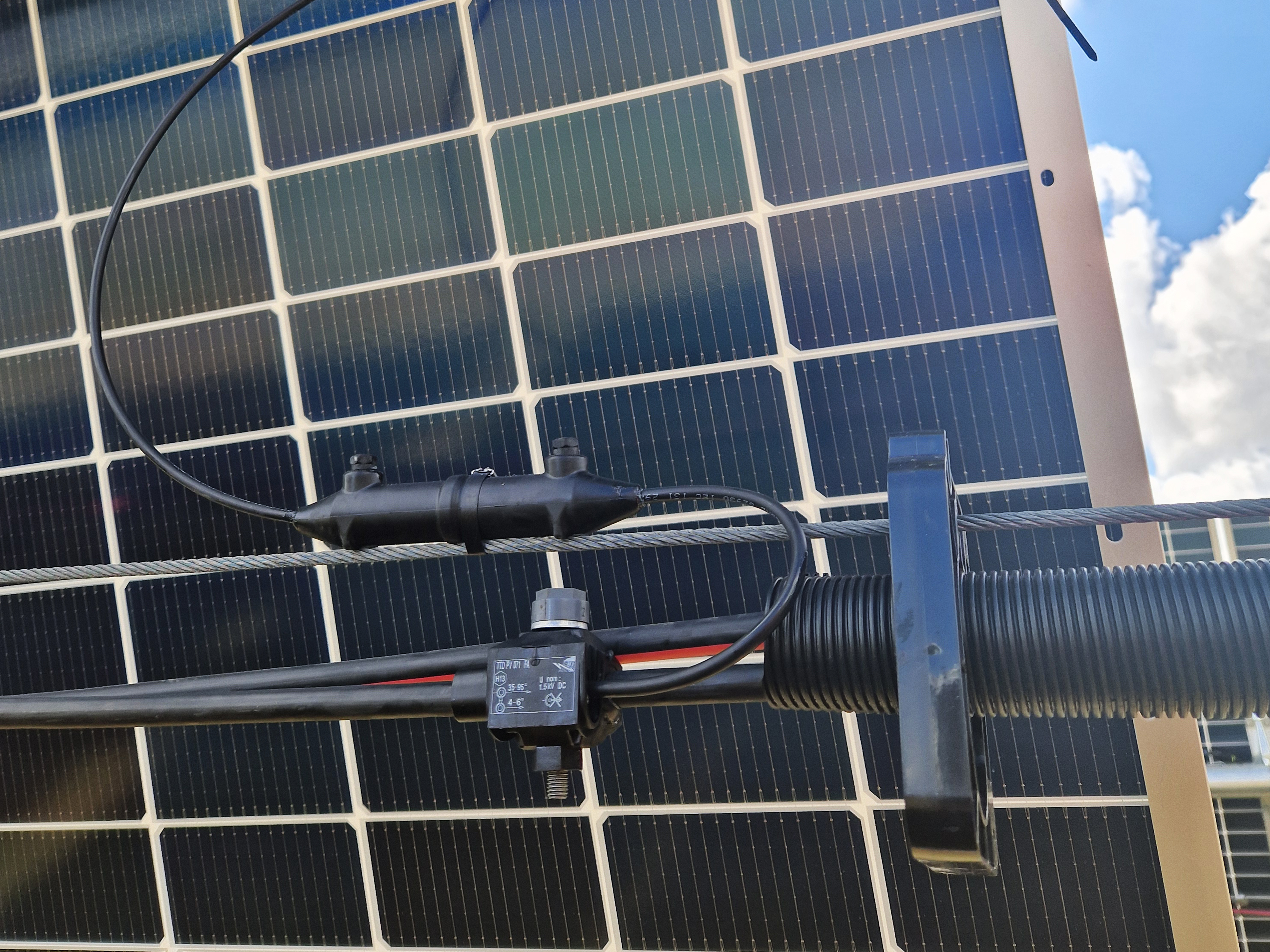

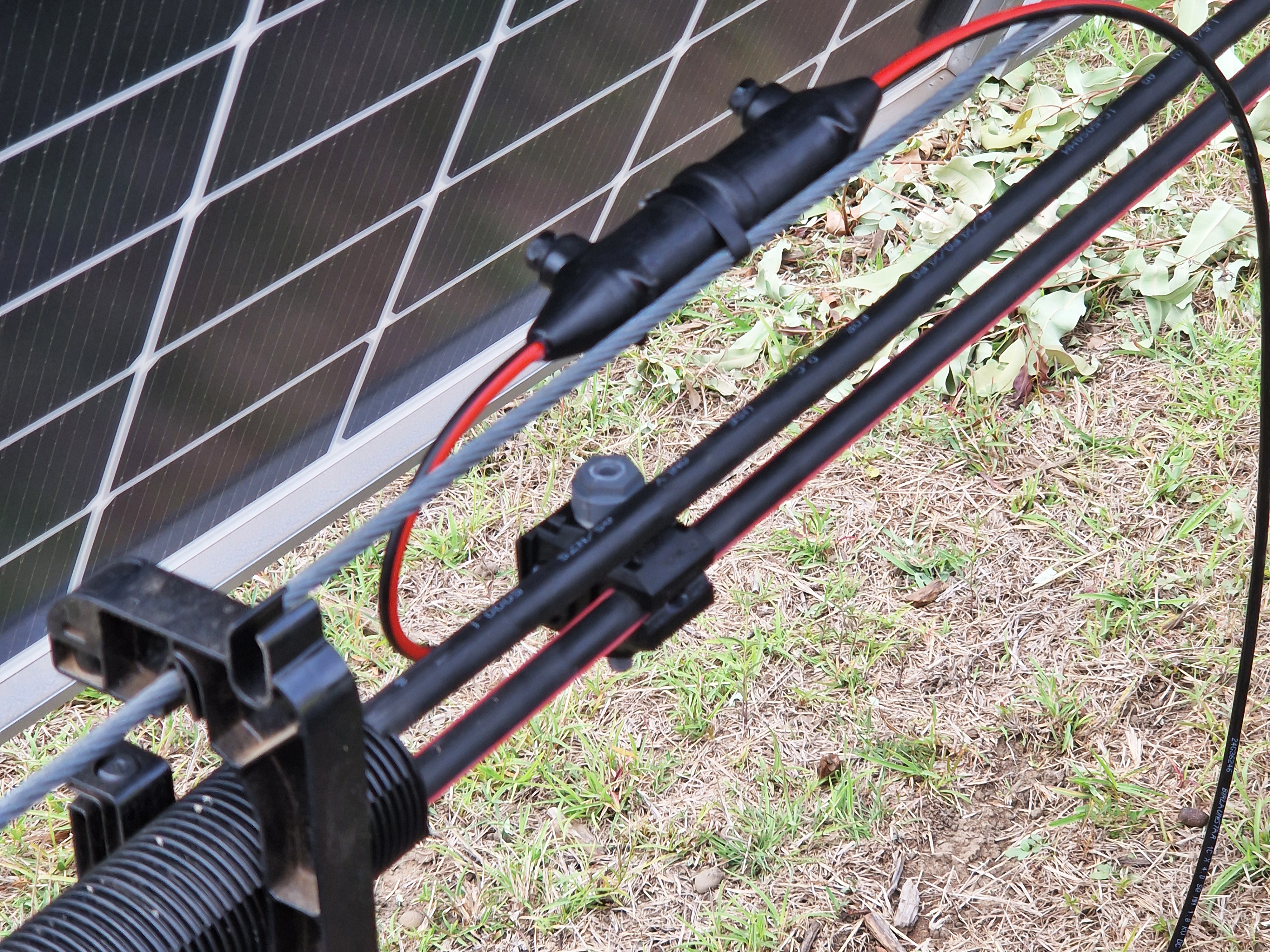

Aldoga, Australia
400 MW
Aldoga, Australia
400 MW
Aldoga, Australia
400 MW
